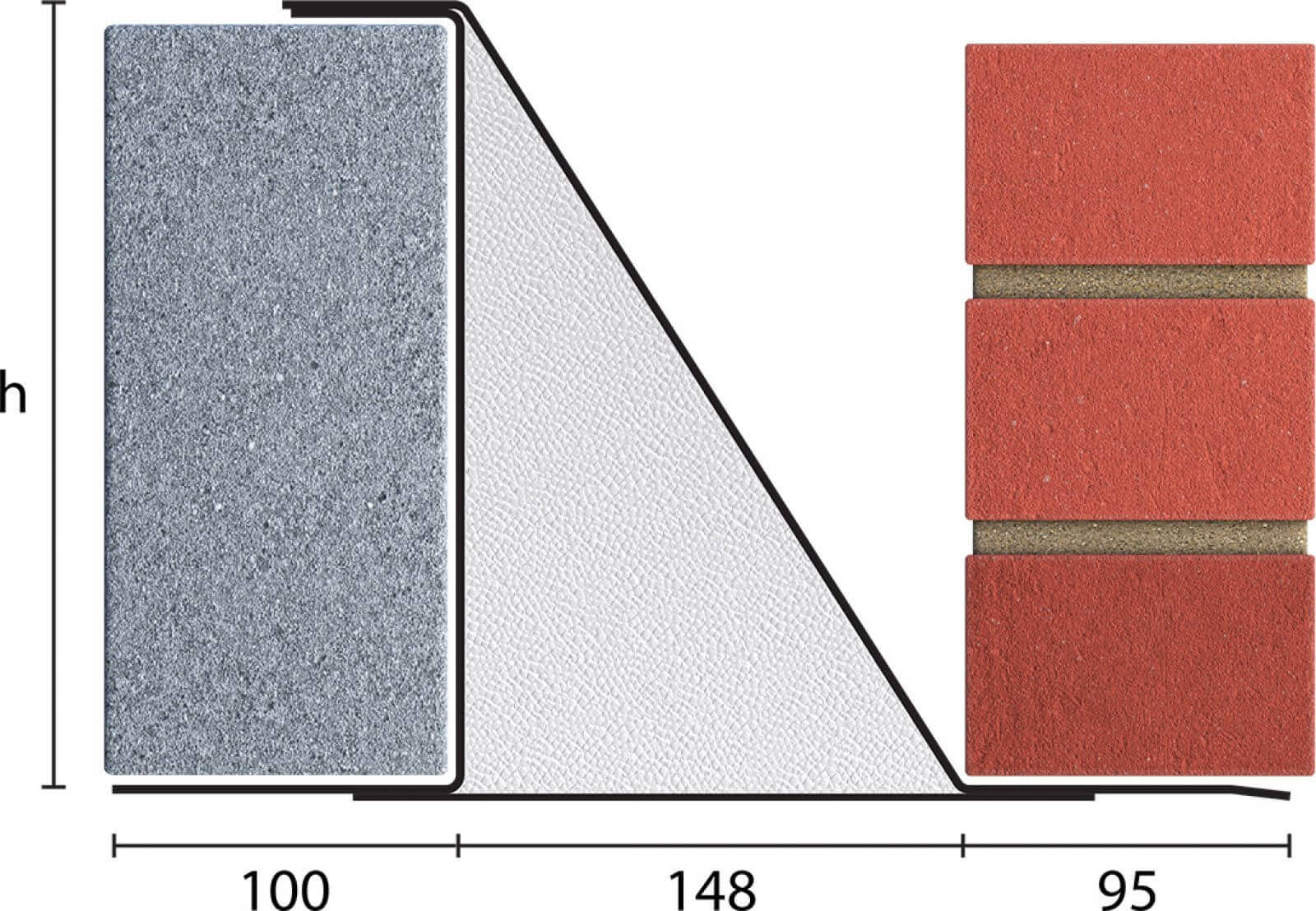

Catnic Extra Heavy Duty 150mm Cavity Lintel CX150/100

The CX150 Catnic Lintel is an Extra Heavy Duty Open Back Lintel

The CX150 has a Perforated Steel Baseplate and Integral Plaster Key

The Built-in DPC saves time during Construction and allows the Cavity to be Cleaned without damaging the Damp Proof Course.

With its Open Back Profile, this Catnic Cavity Lintel allows Masonry to build upon Outer and Inner Leaf continuously.

Extra Heavy Duty Catnic Lintel Features

• Triangulated Masonry Load
• Uniformly Distributed Masonry Load
• Supports Concrete Floors
• Fair Faced Inner Leaf Masonry
• Large Span Trussloads
• Attic Truss Loads
• Continuous Insulation
• Uniformly Distributed Timber Floors and Roof Loads
• 150-165mm Cavity
• 100 - 115 Inner Leaf

Ensure one course of Block prior to installation of floor / Roof

Both Leaves should be Raised Together

Nominal 150mm End Bearings

Speak to a Lintel Expert if you have any Questions

Catnic CX150/100 Datasheet

Click for Catnic Lintel Selector
